DHBT diesel concrete pump DHBT 60 80 manufacturer from China Qingdao Jiuhe Heavy Industry Machinery Co.,Ltd

Payment Terms:	T/T
Place of Origin:	Shandong, China (Mainland)

Product Detail

Model No.: DHBT 60 80

Packing: One 20'GP container can hol...

Brand Name: JH

Production Capacity: 100 sets/ month

Delivery Date: Within 15 days after receip...

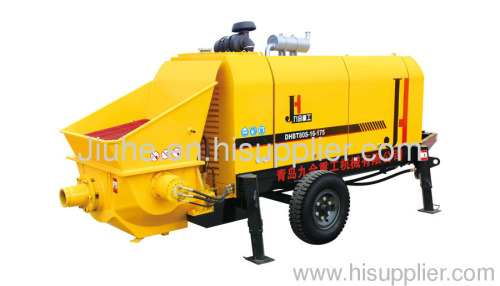

DHBT Series Large Concrete Pump (Diesel engine Model)

Main Technical Data of DHBT Series Large Concrete Pump (Diesel Engine Model)

For detailed technical data and configuration kindly inquire us.

Item		Unit	DHBT60S-13	DHBT60S-16	DHBT80S-13	DHBT80S-16
Max. theoretical capacity	L-pressure	m³/h	60	60	80	80
Max. theoretical capacity	H-pressure	m³/h	36	35	47	46
Max. delivery pressure	L-pressure	Mpa	7.6	9.6	7.6	9.6
Max. delivery pressure	H-pressure	Mpa	12.5	15.7	12.5	15.7
Hydraulic pressure		Mpa	32	32	32	32
Diesel engine (Optional)			Original VOLVO/DEUTZ imported from Germany
Main oil pump			Original German HAWE, REXROTH and Japanese KAWASAKI
Main oil cylinder dia./pole dia. × stroke		mm	125/80×1650	140/90×1650	125/80×1650(1800)	140/90×1650(1800)
Diameter of concrete delivery cylinder		mm	200
Diesel engine power		Kw	118	145	145	175
Fuel consumption		g/Kwh	218	223	223	228
Capacity of hydraulic oil tank		L	500
Hopper capacity		m³	0.6
Overall weight		Kg	6300	6500	6800	7000
Max. theoretical delivery distance		m	Vertical 180	Vertical 250	Vertical 180	Vertical 250
Max. theoretical delivery distance		m	Horizontal 700	Horizontal 1000	Horizontal 700	Horizontal
